产品描述

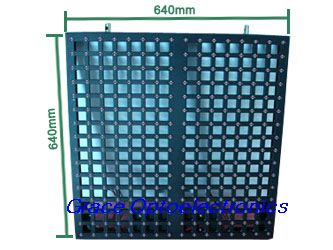

Cabinet Size(W * H)

640mm*640mm

Pixel Configuration

1R1G1B

 Weight

8kg/pc

Area

 0.41m2

Pixel Pitch

40mm

Density of Pixel

625dots/ m2

Resolution

16dots*16dots

Driving Method

Static duty

Specification:
Module Parameters
Physical Pitch: 36mm
Physical Density: 625pixels/M2
Pixel Type and Configuration: 1R1G1B
Drive Mode: Static.
Cabinet Parameters
Cabinet Size: 640X640X80mm
Cabinet Resolution: 16X16
Strip Quantity: 16PCS
Cabinet Weight: 8kg
Display Parameters
Optical Brightness: ≥ 1000CD/M2
Contrast Ratio: ≥ 1000: 1
View Angle(50% Brightness): 110° /60°
Minimum View Distance: 40M
Transparency Ratio: 53%
Gray Scale: 8bits/256levels
Color Capacity: 16.7million
Power Supply
Power Consumption (Max. ): 230W/ M2
Power Consumption (Ave. ): 75W/ M2
Operating Power Source: AC110-220V 50-60Hz
Controller Frame Frequency: 60-85Hz
Refresh Rate: 2000Hz
Brightness Adjustment: 0-100%, 8 levels automatic
Gamma Correction: -5.0-5.0
Correction Scale Level: 8bits
Color Temperature: 5000-9300K
Brightness Correction: Pixel, Module, Cabinet Correction.
Input Source Support: Composite, S-video, Component, VGA, DVI, HDMI, SDI, HD_SDI.
Control Distance: UTP CAT5E: 100M.
Multi-mode Fiber: 500M.
Single-mode Fiber: 10KM
Reliability Operating Temperature: -40-+65 degree
Operating Humidity: 10-90% RH
Operating Life Span: 100, 000 Hours
MTBF: 5, 000 Hours
Protection Ratings: IP63
Pixels Out of Control Rate: 0.01%
