产品描述

Products function introduction:

1) High intensity and can be adjusted, so can meet the request of the customers according the application environment.
2) Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light
3) To pictures and character, have clear, exquisite and real display effect
4) Big viewing angle to 110 degree at horizontal line, 60 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion
5) Can repair each led lamps, so the cost of maintain is lower, and easy to repair.

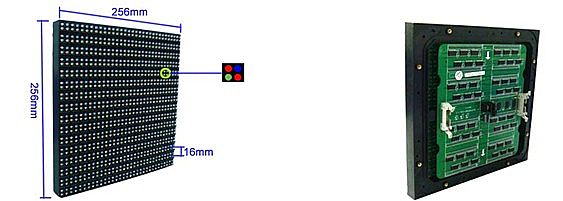

Module Size(W * H)

256mm*256mm

Pixel Configeration

2R,1G,1B

Pixel Pitch

16mm

Resolution

16dots*16dots

Pixel Density

3906/m2

Driving Method

Static duty

Cabinet Size(W * H)

1024mm*1024mm

Module Qty

16pcs

Cabinet Resolution(W * H)

64dots*64dots

Cabinet Pixel

4096

Weight

 60kg/pc

Area

1.049m2

Avarage Power Consuption

400W/m2

Standard Max Consuption

950W/m2

pixel pitch 16mm
size of module 256*256mm
pixel density 3906dots/㎡
pixel composition 2R1G1B
LED encapsulation DIP546
resolution 16*8

best viewing distance 14m
best viewing angle 110°
maximun power consumption 950W/㎡
size of standard cabinent 1024*1024
resolution of standard cabinent 64*64
weight of standard cabinet 50Kg(waterproof)

dirving method static constant
frame frequency ≥60Hz/s
refresh rate ≥2000Hz/s
white balance brightness ≥8000cd/㎡
